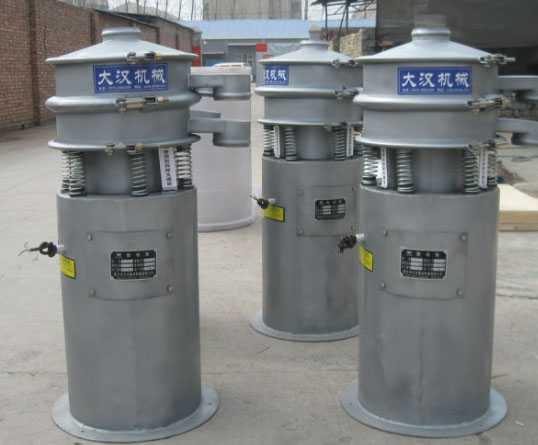

Small diameter vibrating sieve
Small diameter vibrating sieve has smaller size whose diameter is 400 mm, its function is same with the normal vibrating sieve.It is light and handy,is mainly used small capacity,
frequently movement,limited working site and any you have this request.And we are the maufacturer of sieve equipment,can manufacture it in quantities,can accept the customized servise such as basement and inlet port or other your requests.
Small diameter vibrating sieve has smaller size whose diameter is 400 mm, its function is same with the normal vibrating sieve.It is light and handy,is mainly used small capacity,
frequently movement,limited working site and any you have this request.And we are the maufacturer of sieve equipment,can manufacture it in quantities,can accept the customized servise such as basement and inlet port or other your requests.
Overview:
Vibrating sieve is designed as a high-precision screening machinery. The power plant is composed of vertical motor,and eccentric weight installed at two ends.We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.We have standard vibrating sieve machine and we can design machine as client's request,such as inlet hopper,inspection window,valve to control matering outflow and other requests.
Applications:
Working principle:
For vibrating sieve Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.
Selection and parameters：
Selection and parameters：
| Model |
Power (kw) |
Sieve Diameter (mm) |
Granularity (mm) |
Volage (v) |
RPM (r/min) |
Capacity (kg/h) |
|
| DH-400 | 1S | 0.18 | 350 | <10 | 380 | 1440 | 100 |
| 2S | |||||||
| 3S | |||||||
| DH-600 | 1S | 0.25 | 550 | <10 | 1440 | 500 | |
| 2S | |||||||
| 3S | |||||||
| DH-800 | 1S | 0.55 | 750 | <10 | 1440 | 800 | |
| 2S | |||||||
| 3S | |||||||
| DH-1000 | 1S | 0.75 | 920 | <10 | 1440 | 1400 | |
| 2S | |||||||
| 3S | |||||||
| DH-1200 | 1S | 1.1 | 1120 | <10 | 1440 | 2100 | |
| 2S | |||||||
| 3S | |||||||
| DH-1500 | 1S | 1.5 | 1420 | <10 | 1440 | 2600 | |
| 2S | |||||||
| 3S | |||||||
| DH-1800 | 1S | 2.2 | 1720 | <10 | 1440 | 3300 | |
| 2S | |||||||
| 3S | |||||||
Note:
The voltage and power in the table can be customized according to your request to adapt your machine working environment.
The capacity in the table is tested in the following cases:the name of raw material is sand with 4 mesh screen.If you want to know specific capacity,please tell us your material and its property.

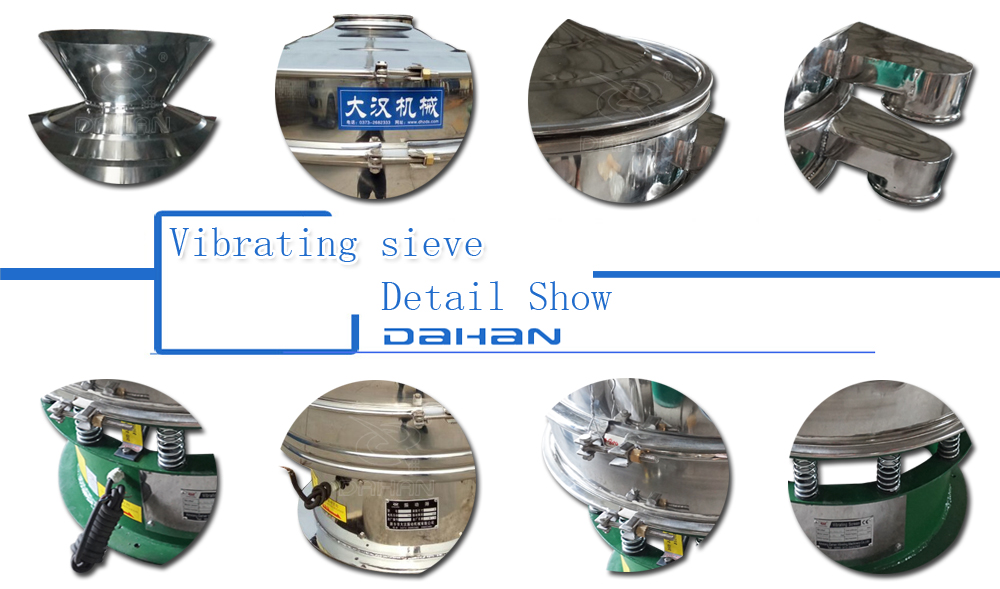

Product Shows:
The voltage and power in the table can be customized according to your request to adapt your machine working environment.
The capacity in the table is tested in the following cases:the name of raw material is sand with 4 mesh screen.If you want to know specific capacity,please tell us your material and its property.
Product Shows:
You can contact me through these ways to get all information of the machine.
Becky Yang【Sales Manager】
E-mail:dhsales01@xxdahan.com
Skype:y1.becky
Mobile/WhatsApp/Wechat:0086-18738378118
Xinxiang Dahan vibrating machinery Co.,Ltd
Address：1000 West of Forest Park,Yanjin County,Xinxiang City,Henan Province,China.
If you place a order,we will arrange the delivery in 5 workingdays after receiving your payment!
